Oil-Water Separators OSB Series

10-1,250 SCFM

ZEKS OSB Oil/Water Separators are effective for reducing the hazardous waste content in compressed air condensate. Separating compressor oil from the condensed water allows for safe and cost-effective condensate disposal in accordance with local regulations. Effective in systems that use all common lubricant types, including: Mineral; Semi-Synthetic; Polyglycols; 24KT Fluid.

Features:

  • Multi-Port Connection

  • Three-Part Separation

  • Requires No Electricity

  • Light Weight Elements Facilitate Maintenance

  • Visual Status Indication



SDD200H Pneumatic No Air-Loss Drain

Pneumatically-powered, ZEKS Savair Drain collects and discharges condensate in compressed air applications. The drain requires no electrical connection and wastes no compressed air in operation. Drain design permits condensate to accumulate in a translucent reservoir which raises a stainless steel float that triggers the discharge cycle. Large discharge port resists clogging and passes even heavily emulsified liquid. Horizontal profile is advantageous in installations with limited clearance. Positive Open/Close valve actuation wastes no compressed air.

0-250 PSI Housing Pressure Rating

Features:

  • Pneumatic Operation - Requires no electricity

  • No Air-Loss - Wastes no compressed air

  • Non-Corrosive Construction - Long service life

  • Large Discharge Port- Resists clogging

EZDB2 Motorized Ball Valve Drain

The EZDB2 drain is engineered specifically for compressed air applications that have highly viscous condensate and pressure as high as 720 psi. This timed electric motorized ball valve is simple to install and set up and can be adjusted to meet numerous roles within a compressed air system. Electric valve operation is microprocessor controlled and includes touchpad for programmable OPEN and CLOSED timing selection. Stainless steel ball and nickel plated brass valve provide durability in harsh environments. Design protects against blockage and damage to gear mechanism for enhanced reliability. Durable FPM o-rings and PTFE seals ensure long service life. 1/2” NPT connection size.

7 Models: (6, 720 PSI Maximum Pressure; 1, 6,000 PSI Maximum Pressure)

Features:

  • Available in Two Voltages: 115 VAC and 230 VAC

  • Field-Serviceable - Minimizes service requirement

  • Resists Blockage - Large 1/2” internal orifice diameter

  • Power Failure Protection - Internal battery back-up (4 AA batteries not included)

  • Alarm Contact Connection - For remote annunciation of drain alarm condition

  • Weatherproof - Extends installation potential

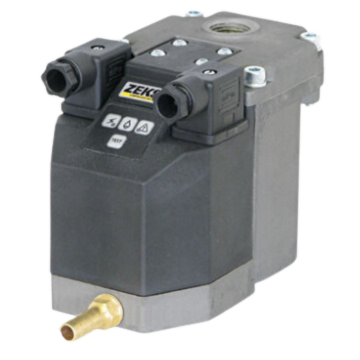

Enterprize II No Air-Loss Drain

Enterprize II is an electronically controlled drain that wastes no compressed air during operation. Suitable for use on dryers, filters, aftercoolers or receivers, the Enterprize II is an effective solution for discharging clean or heavily emulsified condensates. A direct-acting valve with a large orifice of accumulated condensate without loss of compressed air. Includes alarm contacts for remote alarm annunciation. 1/2” NPT inlet connection size with 1/4” brass barb outlet.

0-230 PSI Operating Pressure

Features:

  • Electronic Level Sensing - Assures liquid discharge with no compressed air waste

  • Available In Two Voltages - 115 VAC and 230 VAC

  • Alarm Contact Connection - For remote annunciation of drain alarm condition

  • Corrosion-Resistant Construction - For durability in harsh environments
